Description
Application scenarios: material handling, palletizing, loading and unloading.
Applicable industries: It can be widely applied in industries such as food and beverage, logistics and warehousing, medicine, fresh produce, automobile manufacturing, and chemical engineering.
Functional features:
1. High speed and stability: The structure of each joint is optimally designed, ensuring a fast running speed and accurate completion of every command step.
2. High cost performance: The model configuration is more reasonable and the structure is more mature and compact.
3. Durable and robust: It can be used continuously within the entire temperature range from 0° C to 45°C and is on standby 24 hours a day.
4. High rigidity: The high-rigidity structure, in combination with the high-speed intelligent palletizing process package, enables robots of the same level to have a larger working range and load capacity.
5. High flexibility: Through the combined effect of all elements, the cycle time between shafts is shortened, resulting in higher output.

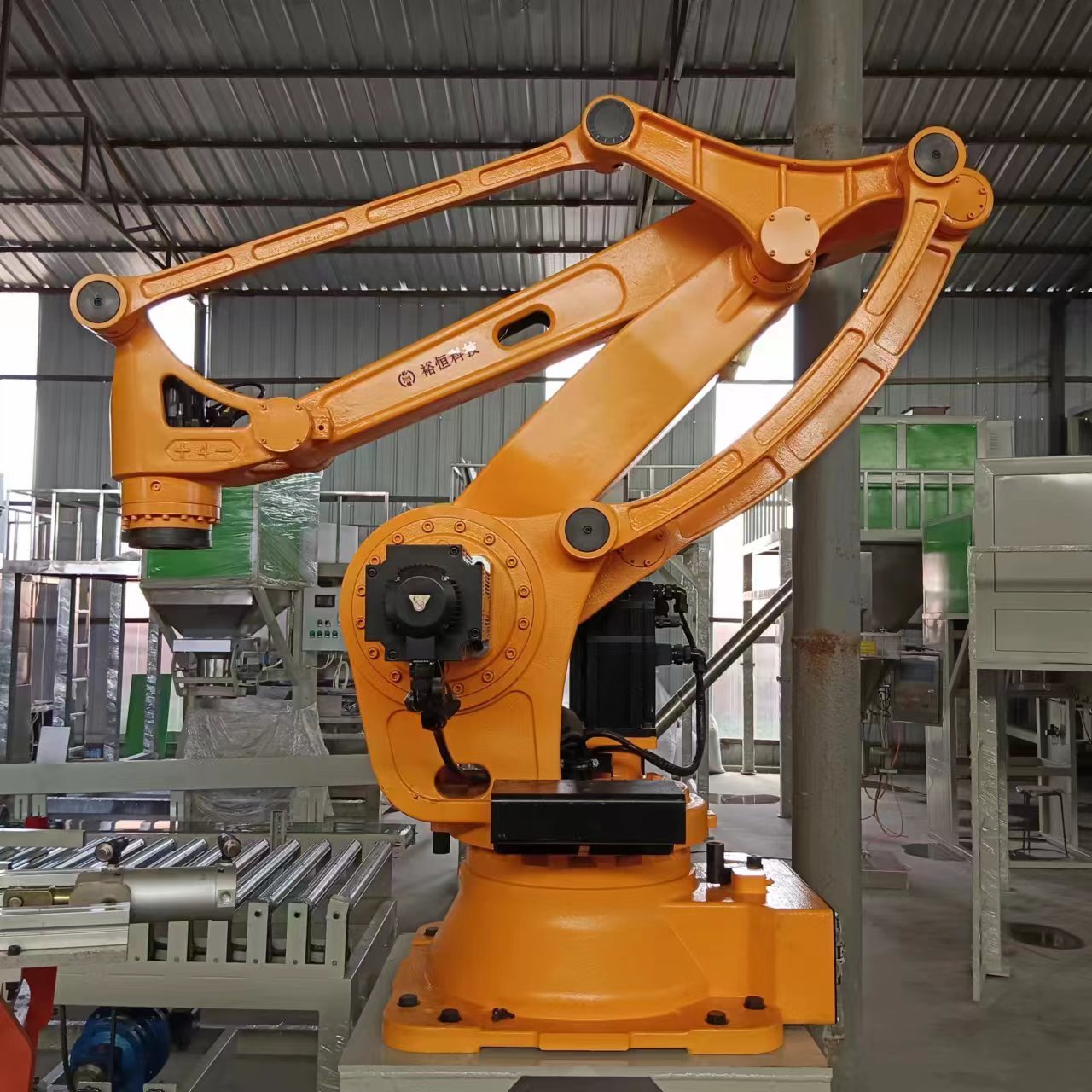

| Name | Palletizing robot | dynamic as van wai | Basic axis | J1 | 士180° | Maximum speed | Basic axis | J1 | 100°/S |
| Type | The vertical joint has 4 degrees of freedom | J2 | 士45° -85° | J2 | 104°/S | ||||
| Main uses | Handling, palletizing, loading and unloading | J3 | +20°-120° | J3 | 104°/S | ||||
| Model | 120 | Arm axis | J4 | 士360° | Maximum speed | J4 | 290°/S | ||
| Maximum carrying weight | 120KG | ||||||||
| Position repetition accuracy | 土0.2mm | ||||||||
| Power supply capacity | 11KVA | Installation method | Ground | ||||||
| Body weight | 1020kG | Usage environmental conditionsUsage environmental conditions | 0-45°C 20-80%RH（There is no condensation phenomenon） | ||||||
| Protection grade | Comparable to IP6 | ||||||||
